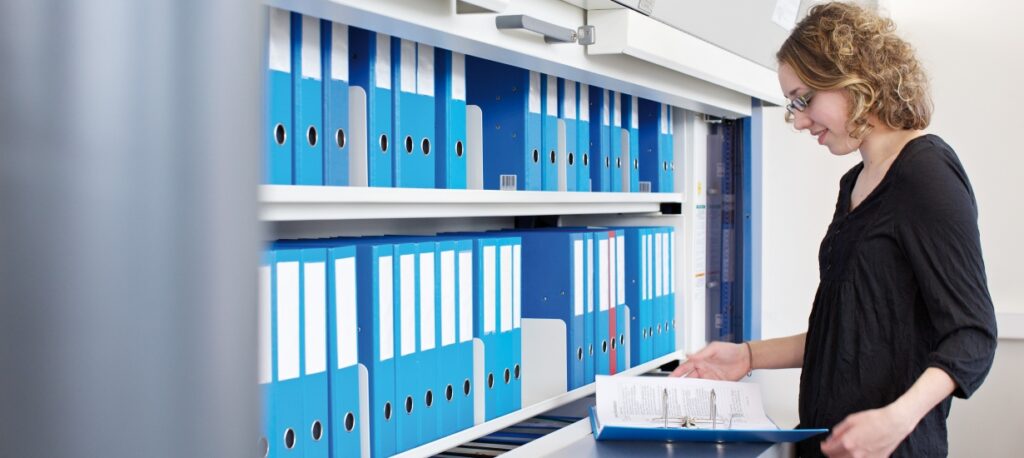

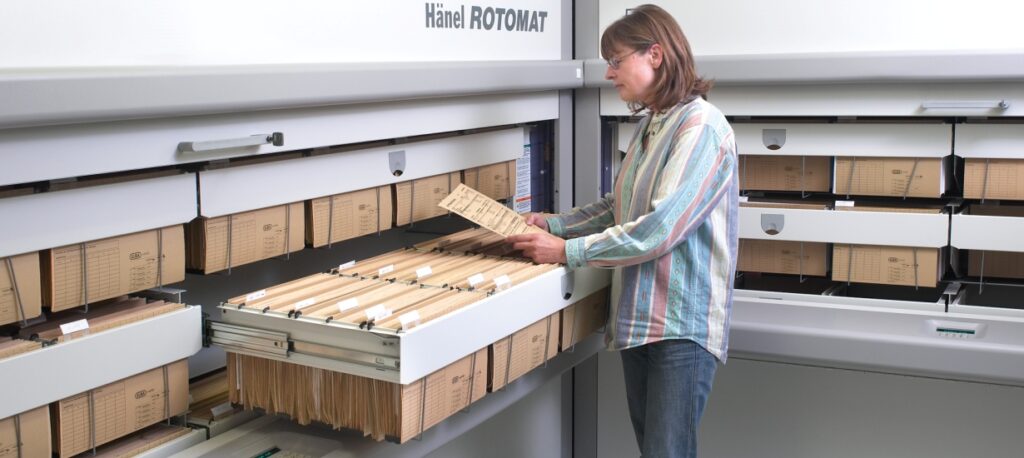

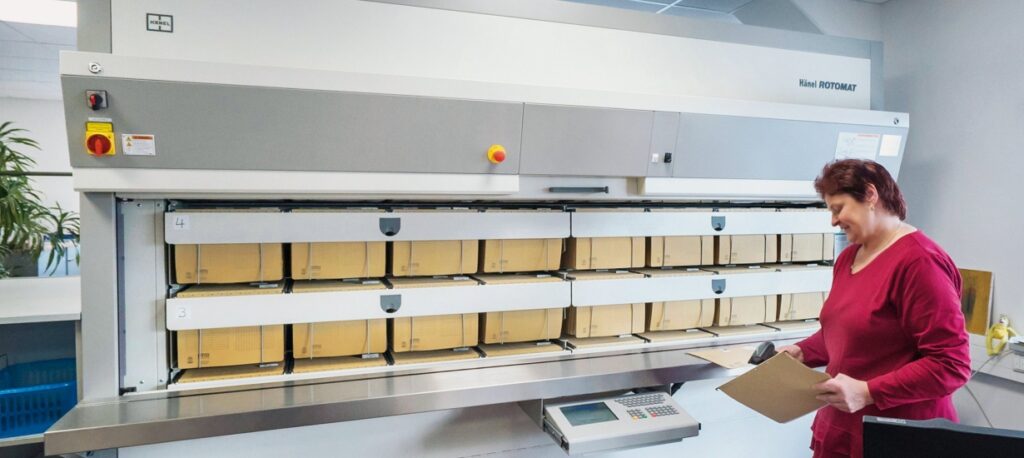

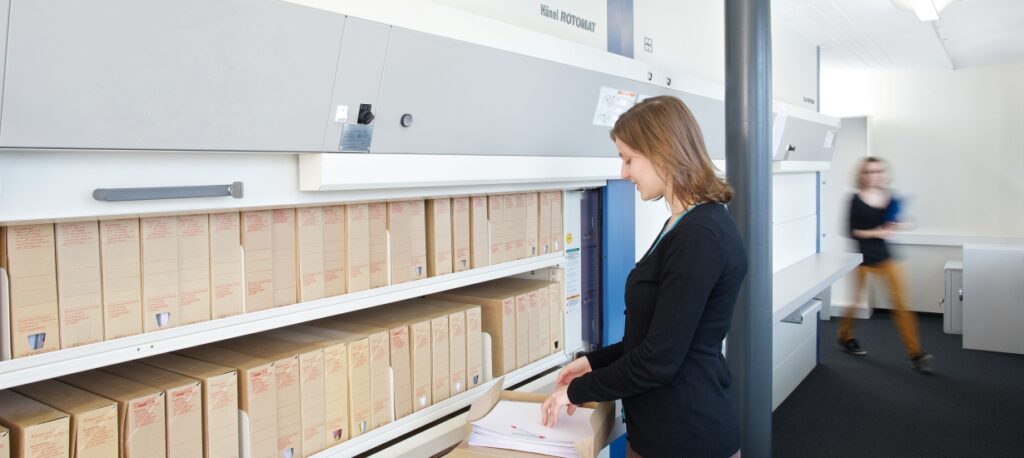

The Hänel Rotomat office carousel is a high-tech system for automated document and material storage in administrative environments. The system uses the "product to user" principle , automatically bringing the desired shelf up to the operator level. This ensures quick access, eliminates physical strain and optimizes internal logistics.
Thanks to its vertical construction, the Hänel Rotomat is an archive carousel that utilises the full height of the room - from floor to ceiling. This leads to a significant reduction in the required archive area, especially in offices with high ceilings. The system is suitable for installation in both standard rooms and spaces with limited floor space.
Access to content is at optimum working height without the need to bend, climb or use ladders. This improves employee comfort and safety and reduces the risk of workplace accidents.
The Rotomat's enclosed design ensures protection from dust, light and unauthorized access. It is suitable for storing sensitive documentation, legal and financial archives as well as for institutions with high security requirements.
The system features a microprocessor controller that manages shelf movement and allows integration with document management systems (DMS). This aids implementation into existing processes and ensures reliable inventory control.
Hänel Rotomat offers a variety of sizes, configurations and accessories, allowing customization to suit the needs of any organization. The system can be adapted for different types of documents, folders, files and office supplies.
| Feature | Description |
|---|---|
| Load capacity of the shelves | 150 kg to 750 kg depending on model |
| Maximum system load capacity | Up to 16 100 kg |
| Dimensions of the shelves | Width 2 243 mm to 2 915 mm; depth 1 000 mm to 1 720 mm |
| Width of the device | From 2 600 mm to 3 420 mm |
| Motor system | Two pole-switching three-phase motors for smooth motion |
| Control and management | Microprocessor controller with integration with DMS systems |
| Security | Light barriers according to DIN EN 15095; warning in case of uneven loading |
| Mechanics of movement | Four-point sliding system for stability and long life |
| Additional options | Access from multiple floors; PC-free control; Safety Bypass; frequency converter |
📌 Check out the full product brochure below after the video to see the specifications, configurations and integration options.
